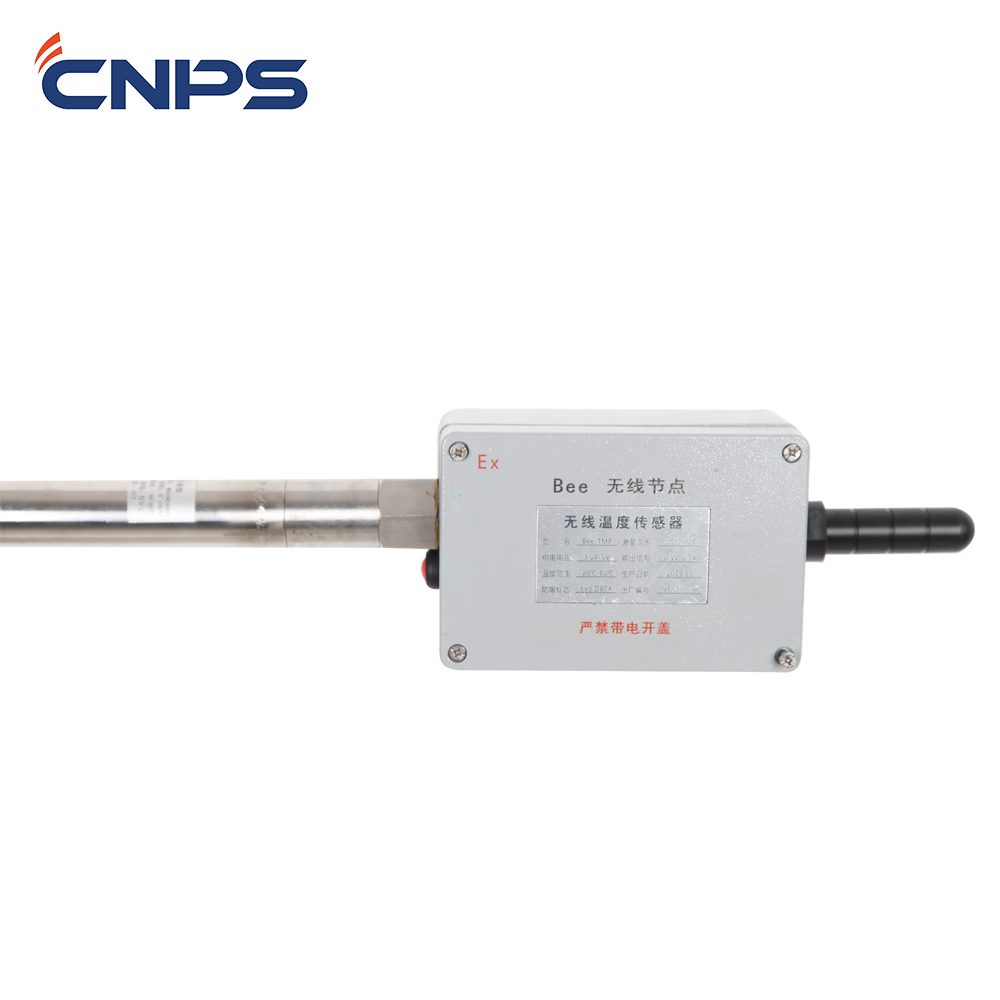

Wireless temperature sensor for mud logging unit The wireless temperature sensor is used to measure the temperature of the mud liquid.
PRODUCT INTRODUCTION
Temperature sensor is a kind of device that converts non electric quantity into electric signal, which is mainly divided into thermal resistance and thermocouple. Bee adopts thermal resistance temperature sensor. The thermal resistance of temperature sensor is one of the most commonly used temperature detectors in the low temperature area. Its main characteristics are high measurement accuracy and stable performance. It is not only widely used in industrial temperature measurement, but also made into a standard reference instrument.
PRODUCT SPECIFICATION
Temperature range: 0-100, 120 ° C
Resolution: 0.1 ° C
Measurement accuracy: ±1%
F·S Supply voltage: 3.5-5VDC
Output: 0.5~2.5VDC voltage
Working temperature: -20~70°C
Insertion depth >160mm
Protection level: IP67
PRODUCT FEATURE AND APPLICATION
The wireless temperature sensor is used to measure the temperature of the mud liquid. It is equipped with an anti-collision metal cover, which is safe and reliable.
PRODUCT DETAILS
The whole structure is made of stainless steel, the protective cover can be disassembled for easy cleaning and maintenance, and the temperature of the liquid and vapor gas in various production processes can be directly measured.
PRODUCT QUALIFICATION
All sensors either are EX type or are intrinsically safe. Zone barriers are installed in the Unit. Using well-known brand products at home and abroad, the sensors of mud logging unit have the advantage of technical and performance indicators. At the same time, the service life is long.
CNPS can ship the goods to you by Express, Air, or sea .
