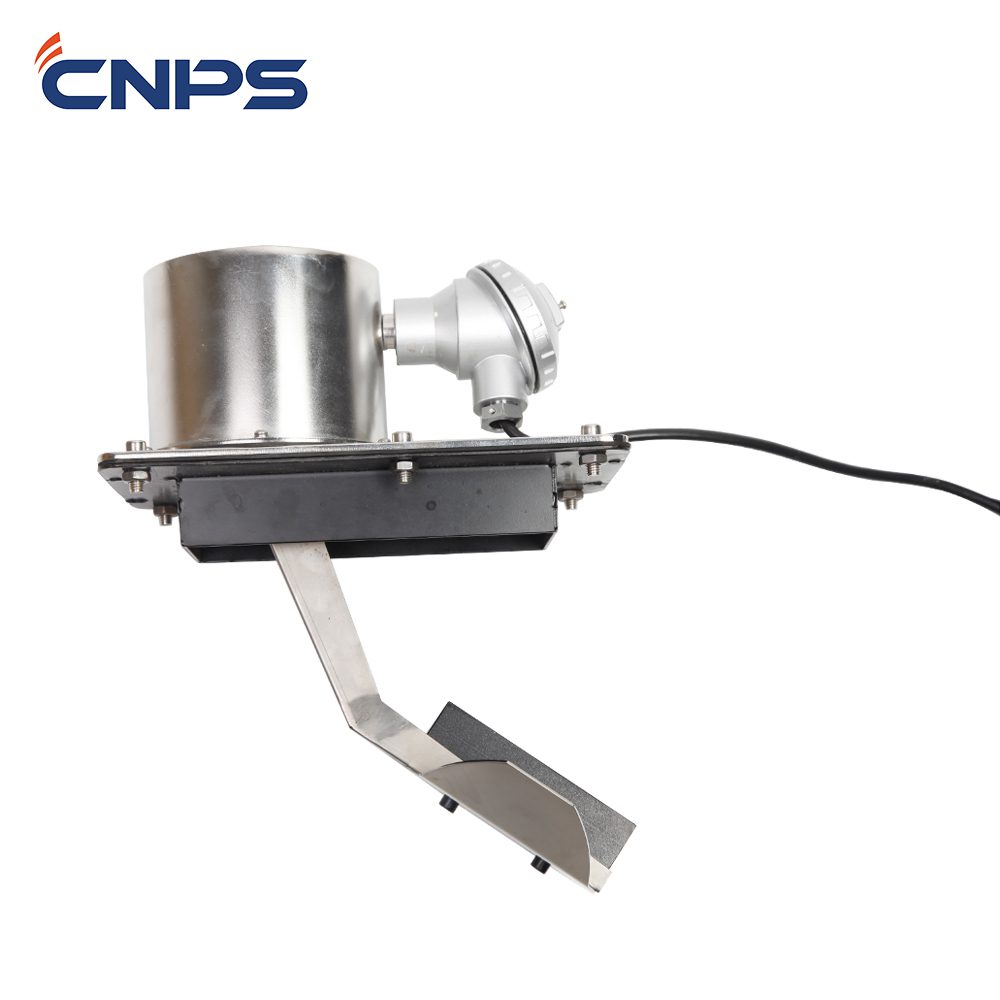

Wireless flow out sensor for mud logging unit The flow out sensor is paddle type , It is used to measure the relative change of the flow at the outlet of the drilling mud.
PRODUCT INTRODUCTION
By using the principle of the continuity of the mud fluid, Bernoulli equation and the analysis of the force on the baffle, the relationship between the flow rate and the sensor baffle can be obtained. The angular displacement of the baffle can be reflected by the linear change of resistance value of the resistor, and the relative change of the drilling fluid flow can be measured. The change of mud outlet flow, compared with the inlet flow, can monitor whether there is mud leakage and formation fluid entering, and timely forecast well kick, well leakage and blowout.
PRODUCT SPECIFICATION
Working temperature: -40~70°C
Baffle opening angle: 0-45°
Measuring range: changing the mass change range of the weight on the baffle, no absolute calibration
Supply voltage: 3.5-5VDC
Output: 0.5~2.5VDC voltage signal
Accuracy: ≤1%F·S
Protection level: IP67
PRODUCT FEATURE AND APPLICATION
When the mud flows, a fixed measuring piece is pushed to move. The greater the flow rate is, the greater the thrust on the measuring piece is, and the greater the opening angle of the measuring piece is
PRODUCT DETAILS
Based on the continuity principle of mud fluid, poluli equation and the analysis of baffle force, the relationship between flow rate and sensor baffle can be obtained. The angle displacement of baffle can be reflected by the linear change of resistance value of resistor, and the relative change of drilling fluid flow can be measured. A potentiometer is connected to the measuring shaft. The sliding arm of the potentiometer rotates synchronously with the measuring piece, which converts the change of the opening angle of the measuring piece (i.e. the change of the flow rate) into the change of the resistance value
PRODUCT QUALIFICATION
All sensors either are EX type or are intrinsically safe. Zone barriers are installed in the Unit. Using well-known brand products at home and abroad, the sensors of mud logging unit have the advantage of technical and performance indicators. At the same time, the service life is long.
CNPS can ship the goods to you by Express, Air, or sea .
