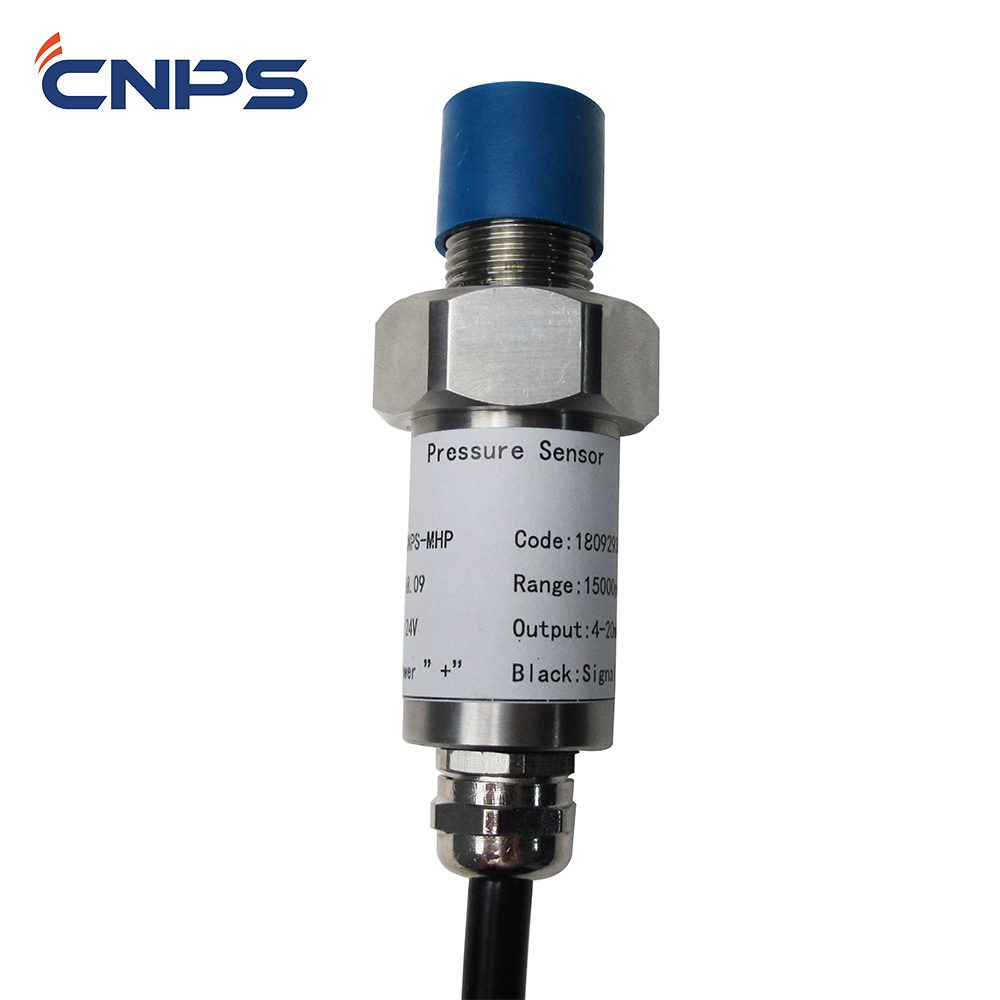

Mud logging sensor named hookload sensor

Overview

PRODUCT INTRODUCTION

MPM489 pressure transmitter is new pressure transmitter developed by our company. A pressure sensor with 316L isolated diaphragm is mounted with the high-performance signal processing circuit in the stainless steel housing. The Sensor is automatically tested by computer and compensated zero and temperature in wide range by laser trimming system. The digital circuit processes the sensor signal into standard output signal.

PRODUCT SPECIFICATION

Technical date sheet 1 supply voltage +24VDC ± 4VDC

Output signal 4~20mADC

Range can be customed(0-40MPa)

Nonlinearity ≤±0.5% FS

Hysteresis ≤±0.5% FS

Repeatability ≤±0.5% FS

Wiresystem 2-wire

Sensor cable 4-20mA

Temperature effect ≤±0.05%FS/°C

Safety level IEC EEXiaⅡ CT6

PRODUCT FEATURE AND APPLICATION

The Pump Stroke sensor is an inductive proximity switch sensor used in the oil field to measure pump or turntable speed. It has a wide range of power supply voltage, high repeatability, fast frequency response, long service life, vibration resistance, corrosion resistance and waterproof, with polarity and short circuit protection.

PRODUCT DETAILS

The pressure port of MPM489 is male port with waterline seal construction, electric connection is plug or cable connection. The compact construction and standard signal output provide you conveniently and stably.

PRODUCT QUALIFICATION

All sensors either are EX type or are intrinsically safe. Zone barriers are installed in the Unit. Using well-known brand products at home and abroad, the sensors of mud logging unit have the advantage of technical and performance indicators. At the same time, the service life is long.

Delivery and services

CNPS can ship the goods to you by Express, Air, or sea.
